Text Styles for CalTrans v7+

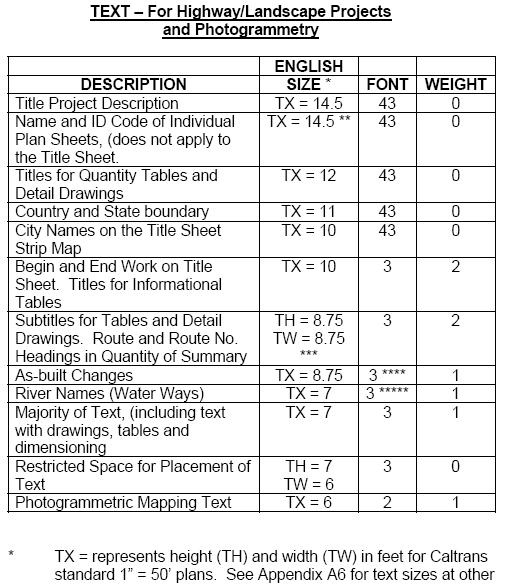

The CalTrans 2006 CADD Standards Manual specifies the following Text "Styles" for 1"=50'.

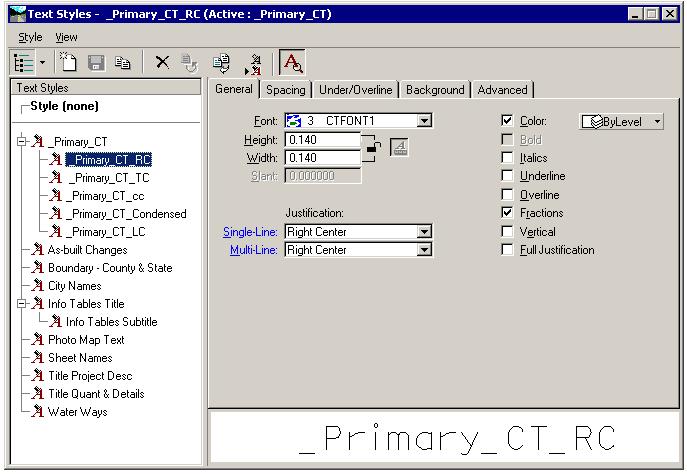

I've set up the MicroStation text styles for them as shown below:

In order not to lose the "symbology link" in InRoads, I've set up child styles deviating from the parent only by Justification (LC, RC, TC is Left Center, Right Center, Top Center, etc.).

Note the Text Height and Width: the Annotation Scale Factor must be set to the sheet size and the Annotation Scale Lock ON to get correct size (using MicroStation commands).

I will be setting InRoads up so that Named Symbologies refer the ustn Text Style.  The InRoads Text Scale Factor will be set to 50, 100, 200, etc. for 50-scale, 100-scale, 200-scale plots, respectively.
